Foglight Administrators Foglight End User Management: Using Network TAPs versus a Switch SPAN Port
  • Forum
  • Wikis
  • Sub-Groups
  • More
  • Cancel
  • New
  • -Foglight Administrators
    • A New Foglight Service Status Widget - Text with Colored Background
    • Adding APM views to an existing Foglight Java cartridge installation
    • Adventures in Agent Creation - Part 1
    • Adventures in Agent Creation - Part 2
    • Adventures in Agent Creation - Part 3
    • Anonymizing the Foglight End User Monitoring Solution
    • Another Foglight Service Status Widget - Colored Text
    • Building a custom dashboard to summarize LogFilter alarms
    • Building a geo drag and drop Foglight dashboard for a service
    • Building Complex Schedules with Foglight
    • Busting Frame Busters in Foglight Experience Viewer (FxV)
    • Community Cartridge: Notification Management Cartridge
    • Compatibility for Navigation Timing API
    • Configuring Internet Explorer 9 (IE9), to best work with Foglight
    • Converting Foglight 4 Script Agents to Foglight 5
    • Creating Load Testing Scripts from FxM and FxV Session Data
    • Custom Agents - Introduction to Script Agents
    • Custom Agents - Script Agent Data Modeling and Units
    • Custom Foglight Dashboards: adding alarm colors to spinners, jelly beans and other gauges
    • Custom Script Agent 1: Leverage an Existing Monitoring Script To Push Data into Foglight
    • Custom Script Agent 2: Build a WCF Dashboard to View the Custom Agent Data
    • Custom Script Agent 3: Add a Metric and Build a WCF Chart to Display it
    • Custom Script Agent 4: Add a Metric to a Table
    • Customizing Foglight – Expert Services Discount Available for a Limited Time!
    • Customizing the out-of-the-box Host Status view
    • Dashboard speed-up
    • Deploying Two FglAMs to the Same Windows Host and running each as a Windows Service
    • Different Thresholds for Different Tablespaces
    • Different Thresholds for Different Tablespaces - Part 2
    • Emailing reports with the proper name and format
    • FGL IDE (Export Customizations & more)
    • Flexible, Cost-effective Remote Administration Services
    • Foglight 5 - Topology Localization
    • Foglight Advanced Administration Training - Limited Space for February 2012
    • Foglight APM Basics (Videos)
    • Foglight APM Features (videos)
    • +Foglight Best Practices
    • Foglight Best Practices (videos)
    • Foglight Best Practices Monthly Webcast – Sign Up for Session 1!
    • Foglight Best Practices: Dashboards and Reports Webcast Registration Open Now!
    • Foglight dashboard as a SharePoint WebPart
    • Foglight Dev Camp & Hackathon 2017
    • Foglight End User Management: Using Network TAPs versus a Switch SPAN Port
    • Foglight End User Service Availability Reporting, Foglight Experience Monitor or Foglight Transaction Recorder which one to use?
    • Foglight Event Synchronization Solution for HP Operations Manager Services Pack Available Now!
    • Foglight Experience Viewer (FxV) URL Search Shortcuts
    • Foglight Host OS Monitoring (videos)
    • Foglight iGoogle Gadget
    • Foglight nologinuser dashboard in SharePoint
    • Foglight Public Virtual Training Courses
    • Foglight Quickstart Services Offering
    • Foglight Reporting using Metric Queries or Groovy
    • Foglight Training Classes -- Public and Private Options Available
    • Foglight Training Packages with Free Healthcheck Services - Limited Time Offer
    • Fraud Support with FxV
    • FxM and Apache Proxy Server (X-Forwarded-Host)
    • FxM: IP Multicasting and Sessionizing
    • FxV Storage Tier Expansion & Analysis Repository Considerations
    • Getting the most out of Foglight's .NET Monitoring - Part 1
    • Getting the most out of Foglight's .NET Monitoring - Part 2: Agent Configuration Specifics and Best Practices
    • Getting the most out of Foglight's .NET Monitoring - Part 3: Monitoring a .NET Executable Application
    • HDIDT - View an Exported Real User Session File
    • How are your Java components processing?
    • How to Handle NTLM within UEM
    • Improve Organizational Adoption of Your APM Solution
    • January Foglight Best Practices Thursday, January 5 - Register Now!
    • Java APM
    • June 2012 Best Practices Webcast Open for Registration!
    • Migrating your Foglight Management Server
    • Monitoring .NET Request Memory Usage with Foglight
    • Monitoring an independent Java process using Foglight
    • Monitoring application availability using Foglight Utility Agents
    • New Foglight Services Packs Available
    • New Sizing Guide for FxM and FxV
    • New UEM Sizing Guide
    • Predicting the Impact of Moving a Guest to Another Host
    • +Quest Application Performance Monitoring (APM) Implementation Methodology
    • Reading a XML File with a powershell script agent
    • Really Simple (Foglight) Syndication
    • Services Section of Quest.com Gets a Facelift
    • Setting the value of a Registry Variable from the Command Line
    • SNMP trap variables in Foglight Alarms
    • The End-User as an Instrument...
    • Thoughts from the road - Foglight Java agent Tag and Follow
    • Thoughts from the road – User session replay - YOU CAN ACTUALLY DO THAT???
    • Training Update - New Foglight Reporting Course Available
    • Understanding Foglight Metrics
    • Updates to Quest's Foglight Public Virtual Training Calendar
    • Use a Foglight to monitor itself
    • Use Foglight to Drive Business Performance
    • Use Foglight to monitor itself
    • User Experience Mgmt Overview
    • Using telnet or wget to check connectivity
    • Using the ConfigService API to setup agent properties (ASPs)
    • Utilizing MS Exchange distribution lists to help with user attribute maintenance
    • We've Redesigned SupportLink to Get You Answers Faster Than Ever - See for Yourself and Enter to Win an iPad!
    • [Case Scenario] - How to avoid duplicate rows when building a report with 5 min granular data
  • (iNdOrE) && (GwAlIoR) +91-9915786526 ##LoVe Marriage Specialist Pandit ji kota
  • Custom Script Agent - Counting Files in a Windows Folder - How-To
  • Foglight Admin 101
  • Foglight monitoring application components running on Docker Containers
  • Foglight User 101
  • Memory Utilization for all processes over X months
  • NetMonitor - Quick How-To Guide
  • Setting JBoss Server name and domain in Foglight
  • Setting Tomcat server name and domain in Foglight
  • testing a bug - Do not publish
  • WebMonitor - Quick How-To Guide
  • WebMonitor agent installation

Foglight End User Management: Using Network TAPs versus a Switch SPAN Port

Greetings, my name is Pat Adee with Quest Software. There have been discussions over the use of the SPAN (also referred to as Mirrored) port of network switches for monitoring network data to the FxM Appliance. Although TAPS have been around since the early 90’s, switch manufacturers addressed the need of adding a definable port to monitor traffic between interfaces on the switches. By adding aSwitch Port ANalyzer (SPAN), manufacturers have been able to simultaneously direct conversations from individual switch interfaces or VLANs to a specific interface. This allows a simplified method of monitoring traffic without the need of obtaining extra hardware or inducing network interruptions.
Figure 1: Using the SPAN Port
All FxM Appliances are available with 10/100/1000 copper and/or Multi-Mode Fiber interfaces. SPAN Ports can be either Copper or Fiber depending on the switch and the speed is limited by the port configuration. Referring to Figure 1, the FxM Appliance attaches to the SPAN port and is able to monitor all the traffic that is passed to the SPAN port. The benefits with using the SPAN port include:
  • On-the-Fly configuration
  • No network downtime
  • Zero cost of implemenation

However, Quest has found several limitations to using this method to monitor traffic: Some limitations include:
  • Dropped packets due to speed overloading (multiple interfaces going to a single interface)
  • Dropped packets due to corrupted data or improper packet size
  • Simultaneous porting limitations (restricted number of interfaces allowed to be mirrored)
  • Missed interfaces to monitor (didn’t know which port(s) to mirror)
  • SPAN port not scalable (as traffic increases over time, more traffic gets dropped)
  • SPAN Ports have low priority (switch vendors put more emphasis on serving users needs)

The result of these shortfalls are incomplete or partial sessions. In Secure sessions (those using SSL), a single dropped packet will typically cause the entire session to be dropped or ignored by the FxM as it will be an incomplete session. For these reasons, Quest highly recommends the use of Network TAPs for the FxM Appliance.
Using Network TAPs
By using Network TAPs, the limitations of the SPAN port mentioned earlier are addressed.
  • No dropped packets (passive monitoring)
  • Corrupted or improperly formatted data will get passed
  • 100% of User Traffic to Server is collected
  • Operates at line speed

Disadvantages of using TAPs would include:
  • Scheduling for network outage (needed to place the tap)
  • Some would argue that network taps present a single point of failure but most taps on the market today are classified as passive. Meaning if they lose power, they still allow traffic to flow to the server, just not to the appliance. Redundant power supplies are also options for some taps
  • Cost of purchasing TAPs
  • May require Channel Bonding to get bi-directional traffic.
  • In other words, two taps per connection (normally found with fiber) may be necessary to get ingress and egress traffic. This is dependent on the TAP manufacturer

When it comes to collecting 100% of the traffic, TAPs are the only way to go. This is especially important if your business needs to satisfy Data Security Compliance and Lawful Intercept requirements.
There are several configuration designs available when using TAPs. Using Figure 2, one location for placement is on the individual server(s) that are to be monitored. FxM Appliances are available with up to 4 Monitor ports depending on the Appliance. This would allow for monitoring up to 4 servers. This method also has greater control when scheduling network outages. Since some server environments are redundant, to place a tap would not cause an application outage. This configuration is also advantageous when the servers are in a server farm at a single location.
Figure 2: TAP at Server Connection
Figure 2 above is fine if you are only monitoring a few servers. If your environment consists of multiple servers and/or multiple server farms, the ideal TAP location would be either before or after the Load Balancer. This configuration is demonstrated in Figures 3 and 4. By placing the TAP at these locations, you minimize the number of TAPs necessary to collect the data. A benefit with monitoring the data before the Load Balancer (reference Figure 3), you will be able to observe the individual IP addresses (requester of data) and have a better understanding of User Traffic locations. However, the Load Balancer’s IP address may take on the appearance as the Web-Server providing the response to the requested information. If your preference is to follow which servers are responding to the users request, refer to Figure 4.
Figure 3: TAP in front of Load Balancer

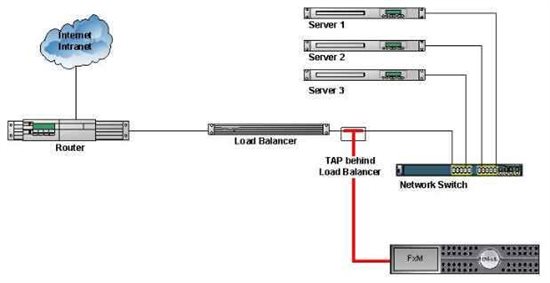

By placing the TAP behind the Load Balancer (Figure 4), you will be able to see which servers are responding to the requested information. However, the limitation here would be understanding who is requesting the information. The Load Balancer typically will appear as the user address making the requester of data appear as a single user. With the Replay functionality of the Foglight Experience Viewer (FxV), you still have the capability of using specific session information (cookies, sessionid’s, etc..) to understand each request.
Another possibility to address recognizing the Users location depends on the type of Load Balancer you are using. For example, if you are using F5 Networks’ Big IP, you can enable “x-forward-for” so that the user IP is included in the packet information. Other possibilities include instrumenting requester information into a custom field embedded in the application. Both methods are common when monitoring user traffic.
Figure 4: TAP behind Load Balancer
Some common Network TAP manufacturers include (but not limited to):
NetOptics http://netoptics.com/
Datacom Systems Inc. http://www.datacomsystems.com/products/network-taps.asp
VSS Monitoring http://www.vssmonitoring.com/
Gigamon Monitoring Switches http://www.gigamon.com/
In Summary:
Quest strongly recommendations the use of Network TAPs for all installations! During evaluations (POC) and FxM only deployments (non-SSL environments) will a SPAN port be reasonably acceptable to use. But Quest’ experience is you will get the best results with the use of Network TAP’s.
For further information regarding the use of Network TAP’s, End User Monitoring or any other Quest Products, please contact your local Quest Sales Team or visit http://www.quest.com/ for more information.
