When granularity 5 minutes is selected for FTR report on response time, duplicates data value is shown for 3 samples.

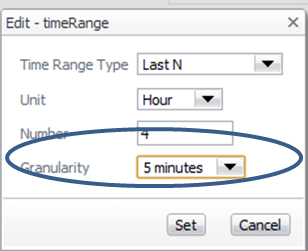

Example Report Built on - Time range selected below
This is due to default retention policy and 15 min rollup. The report shows same value for average, minimum and maximum value for the 15 min for every 5 min period.

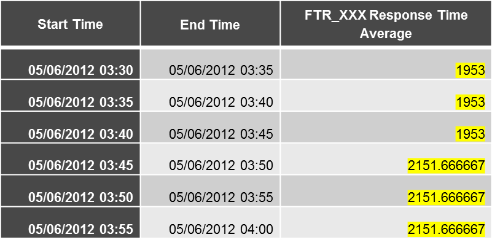

Example metric table below is taken for a FTR Report – Showing Response Time
Resolution Steps
As the default rollup is 15 mins, the retention policy for the parent label or object “EURESULT” can be changed to 5 mins, in order to avoid duplicated values in a report

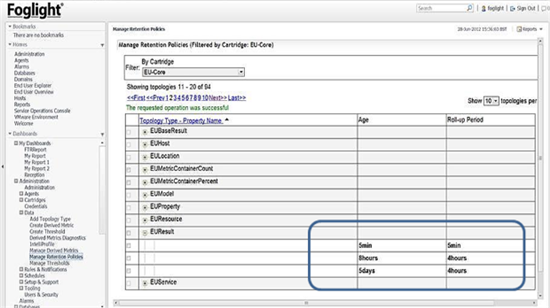

Goto Foglight UI | Dashboards Navigation Pane | Data | Manage Retention Policies | Filter for “EU-Core” (This object is used as an example for FTR Report) | Look for “EURESULT” | Click on “EURESULT | Change the values and click Save.

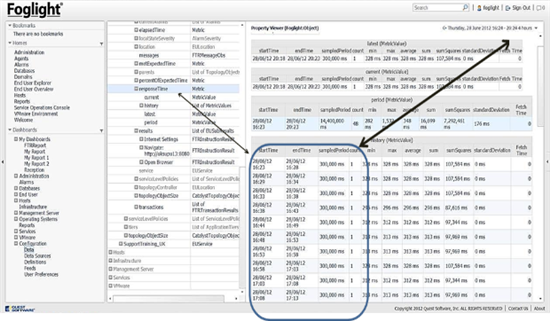

Screenshot below shows RAW data with 5 min instead of 15 min rollup. So Goto UI | Configuration | Data | EUServices | <FTRAgent> | Results | Response Time

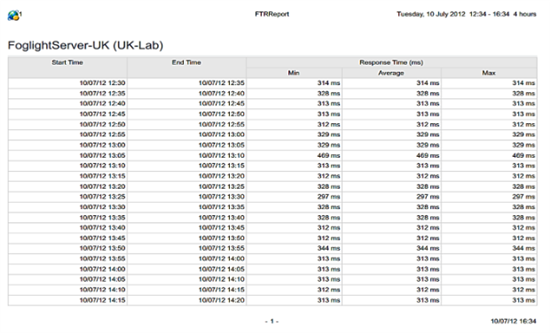

Screenshot below shows report output.
